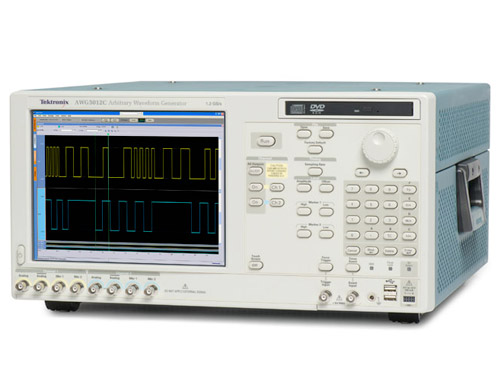

AWG5000 任意波形發生器
- AWG5000
- 適用于當今復雜信號的最通用信號發生器。

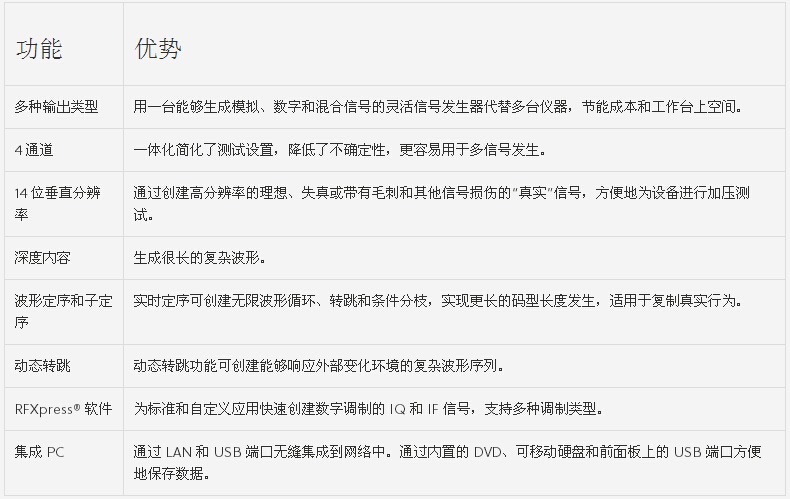

AWG5000 系列任意波形發生器具有 14 位垂直分辨率，最高 1.2 GS/s，4 個模擬和 32 個數字通道輸出，是各種混合信號生成的理想解決方案。AWG5000 系列提供模擬和數字輸出性能的獨特組合，通過一臺儀器即可生成模擬和數字 IQ 以及 IF 信號。增加了高級定序和動態轉跳功能，可方便地創建極其復雜的波形來更真實模擬真實環境。
軟件試用請點下面“產品技術資料”下載
- AWG5014C
- 報價:
| 說明 |
模擬帶寬 |
采樣率 |
記錄長度 |
模擬通道 |
數字通道 |
頻譜分析儀 |
| 4 |
最高 300 MHz |
0 |
480 MHz |
每通道 16M 點（32M 可選） |
1.2 GS/s |
14 位 |
- AWG5012C
- 報價:
| 說明 |
模擬帶寬 |
采樣率 |
記錄長度 |
模擬通道 |
數字通道 |
頻譜分析儀 |
| 2 |
最高 300 MHz |
28 |
480 MHz |
每通道 16M 點（32M 可選） |
1.2 GS/s |
14 位 |
- AWG5002C
- 報價:
| 說明 |
模擬帶寬 |
采樣率 |
記錄長度 |
模擬通道 |
數字通道 |
頻譜分析儀 |
| 2 |
最高 230 MHz |
28 |
240 MHz |
每通道 16M 點（32M 可選） |
600 MS/s |
14 位 |
